TMR9001 Ultra High Sensitivity,Ultra Low Noise TMR linear sensor
Back
Part No.:TMR9001
Previous Part No.:
Bridge Configuration:Full bridge
Supply Voltage:0~7 V
Sensitivity (mV/V/Oe):300
Resistance (kΩ):50
Saturation Field (Oe):±4
Sensing Direction:X-axis
Hysteresis (Oe):0.1
Noise (nT/rt(Hz) @1Hz):0.15
Form Factor:SOP8
Lead Time:In stock
Datasheet:
  • TMR9001

General Description:The TMR9001 linear sensor utilizes a unique push-pull Wheatstone bridge composed of four TMR sensor elements. The TMR9001 is assembled in a 6mm×5mm×1.5mm SOP8 package.



Features and Benefits:(1)Tunneling Magnetoresistance(TMR)Technology;(2)Ultra High Sensitivity(~300mV/V/Oe);(3)Ultra Low Noise Spectral Density (150pT/Hz@1Hz);(4)Very Low Power Consumption;(5)Excellent Thermal Stability;(6)Low Hysteresis;(7)Compatible with Wide Range of Supply Voltages;(8)No need for set/reset calibration



Applications:(1)Weak Magnetic Field Sensing;(2)Current Sensors;(3)Position and Displacement Sensing;(4)Bio-medical Sensing;(5)Magnetic Communication

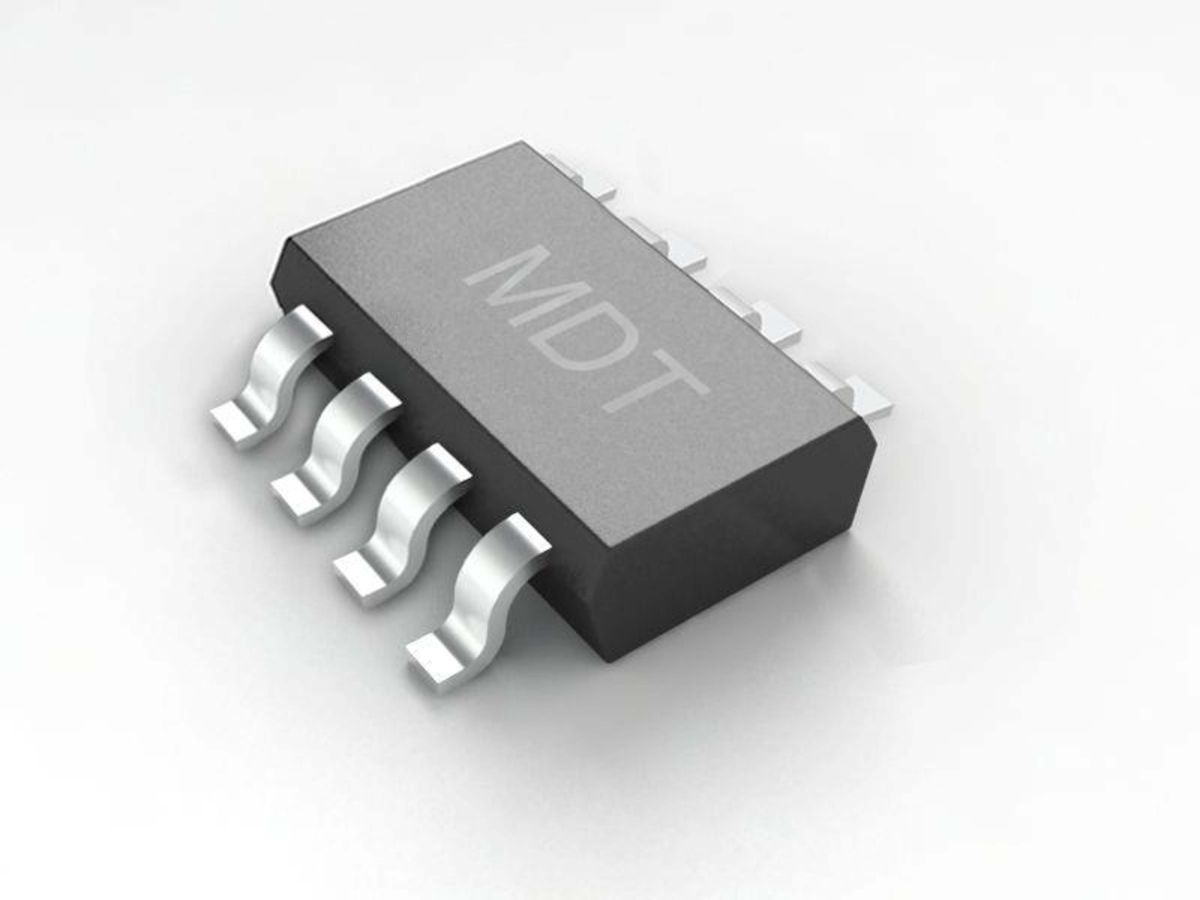

sop8

sop8
