TMR2503 Z-axis TMR linear sensor
Part No.:TMR2503
Previous Part No.:
Bridge Configuration:Full bridge
Supply Voltage:0~7 V
Sensitivity (mV/V/Oe):1
Resistance (kΩ):0.9
Saturation Field (Oe):±750
Sensing Direction:Z-axis
Hysteresis (Oe):1
Noise (nT/rt(Hz) @1Hz):~ 50
Form Factor:TO94 SSIP4 SOT23-5
Lead Time:In stock
  • TMR2503

General Description:The TMR2503 linear sensor utilizes a unique push-pull Wheatstone bridge composed of four unshielded TMR sensor elements. The unique bridge design provides a high sensitivity differential output that is linearly proportional to a magnetic field applied perpendicular to the surface of the sensor package, and it provides superior temperature compensation of the output. The TMR2503 is available in the TO94,SSIP4,or SOT23-5 packages.


Features and Benefits:(1)Tunneling Magnetoresistance(TMR)Technology;(2)High Sensitivity;(3)Large Dynamic Range;(4)Low Power Consumption;(5)Excellent Thermal Stability;(6)Very Low Hysteresis;(7)Compatible with Wide Range of Supply Voltages.


Applications:(1)Magnetic Field Sensing;(2)Current Sensors;(3)Motor and Fan Drivers;(4)Position and Displacement Sensors

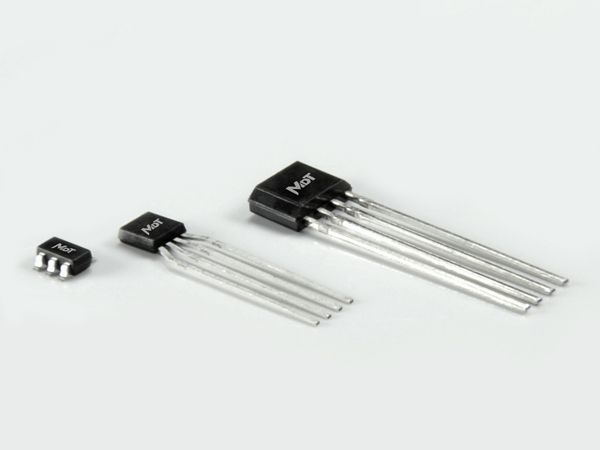

sot23-5 ssip4 to94


The information provided herein by MultiDimension Technology Co., Ltd. (hereinafter MultiDimension) is believed to be accurate and reliable. Publication neither conveys nor implies any license under patent or other industrial or intellectual property rights. MultiDimension reserves the right to make changes to product specifications for the purpose of improving product quality, reliability, and functionality. MultiDimension does not assume any liability arising out of the application and use of its products. MultiDimension’s customers using or selling this product for use in appliances, devices, or systems where malfunction can reasonably be expected to result in personal injury do so at their own risk and agree to fully indemnify MultiDimension for any damages resulting from such applications.
