TMR3101 10-bit Absolute Magnetic Rotary Encoder
Back
Part No.:TMR3101
Previous Part No.:
Type:Biaxial TMR Angle Sensor
Supply Voltage:3.3 V
Angle Measurement:360°
Resistance:
PP (mV/V):
Field Operating Range:400~900 Oe
Angular Error:0.35°
Output:SPI;PWM;ABI;UVW;PDI

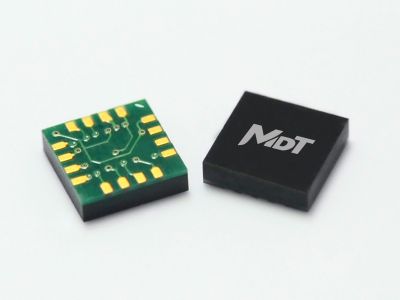

Form Factor:LGA16L(5×5×0.9)
Lead Time:In stock
  • TMR3101

Introduction


TMR3101 is a contactless absolute magnetic rotary encoder. It is designed for measuring single-turn absolute angular position from 0 - 360º, or it can be used as an incremental encoder with pulse output signals.

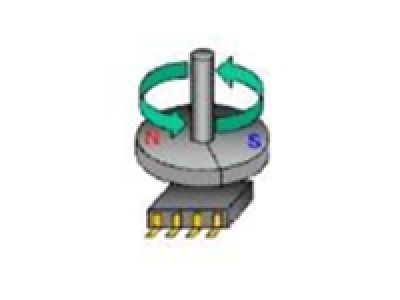

TMR3101 is designed with Tunneling Magnetoresistance (TMR) angle sensors and integrated with digital signal processing circuitry. Paired with a magnet that is magnetized along the radial direction, it can measure 0-360º angular position in 10-bit (1024-line) resolution, with the angular resolution at 0.35º. It supports multiple output interfaces, including PWM, SPI, dual-pulse with zero position, single-pulse with zero position and direction output, or UVW output.



Features

l  360° angular position measurement

l  Contactless measurement suitable for complicated operating environment

l  Wide operating magnetic field range, allowing exceptional jitter tolerance

l  Magnetic sensor operates in saturation range, providing enhanced noise immunity

l  Angular resolution up to 0.35°

l  Multiple output interfaces including SPI/PWM/ABZ/UVW/PDI

l  High-speed SPI bus at 5MHz

l  Fast PWM refresh rate

l  10-bit continuous angular position output @3000RPM in real-time

l  1024-line incremental output @10000RPM

l  Pulse width variation < 10%

l  Operating temperature range: -40℃~125℃

l  Compact LGA package in 5mm*5mm*0.9mm

l  Single-turn/multi-turn absolute rotary encoder

l  Contactless angular position measurement

l  Steering wheel position detection

l  Gas pedal position detection

l  Rotary position knobs



Applications

l  Single-turn/multi-turn absolute rotary encoder

l  Contactless angular position measurement

l  Steering wheel position detection

l  Gas pedal position detection

l   Rotary position knobs
