TMR2922 Ultra High Sensitivity TMR linear sensor
Part No.:TMR2922
Previous Part No.:
Bridge Configuration:Full bridge
Supply Voltage:0~7 V
Sensitivity (mV/V/Oe):7~15
Resistance (kΩ):2
Saturation Field (Oe):±15
Sensing Direction:Y-axis
Hysteresis (Oe):< 1
Noise (nT/rt(Hz) @1Hz):~ 1
Form Factor:SOP8
Lead Time:In stock
  • TMR2922

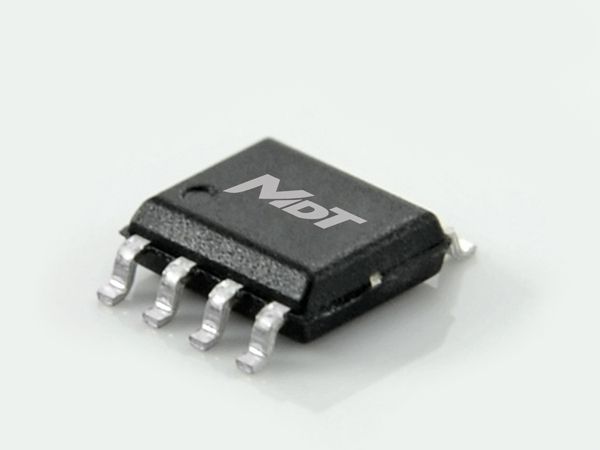

General Description: The TMR2922 linear sensor utilizes a unique push-pull Wheatstone bridge composed of four unshielded TMR sensor elements. The unique bridge design provides a high sensitivity differential output that is linearly proportional to a magnetic field applied parallel to the surface of the sensor package, and it provides superior temperature compensation of the output. The TMR2922 is available a 6mm x 5mm x 1.5mm SOP8 package.


Features and Benefits:(1)Tunneling Magnetoresistance (TMR) Technology;(2)High Sensitivity (7~15mV/V/Oe);(3)Large Dynamic Range;(4)Very Low Power Consumption;(5)Excellent Thermal Stability;(6)Very Low Hysteresis;(7)Compatible with Wide Range of Supply Voltages;(8)Ultra Low Noise Spectral Density(<1nT/sqrt(Hz) @ 1Hz)


Applications:(1)Weak Magnetic Field Sensing;(2)Current Sensors;(3)Position and Displacement Sensing
