TMR2501 Z-axis TMR linear sensor
Back
Part No.:TMR2501
Previous Part No.:TMR501
Bridge Configuration:Full bridge
Supply Voltage:0~7 V
Sensitivity (mV/V/Oe):0.3
Resistance (kΩ):5
Saturation Field (Oe):±1000
Sensing Direction:Z-axis
Hysteresis (Oe):1
Noise (nT/rt(Hz) @1Hz):~ 50
Form Factor:TO94 SSIP4
Lead Time:In stock
  • TMR2501

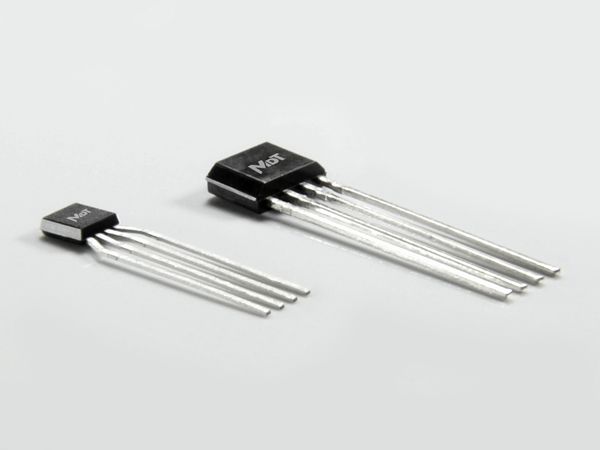

General Description:The TMR2501 linear sensor utilizes a unique push-pull Wheatstone bridge composed of four unshielded TMR sensor elements. The unique bridge design provides a high sensitivity differential output that is linearly proportional to a magnetic field applied perpendicular to the surface of the sensor package, and it provides superior temperature compensation of the output. The TMR2501 is available in the TO94 and SSIP4 packages.



Features and Benefits:(1)Tunneling Magnetoresistance(TMR)Technology;(2)High Sensitivity;(3)Large Dynamic Range;(4)Low Power Consumption;(5)Excellent Thermal Stability;(6)Very Low Hysteresis;(7)Compatible with Wide Range of Supply Voltages.



Applications:(1)Magnetic Field Sensing;(2)Current Sensors;(3)Position and Displacement Sensors.
